BB-24
BRAZOS BEVELERS

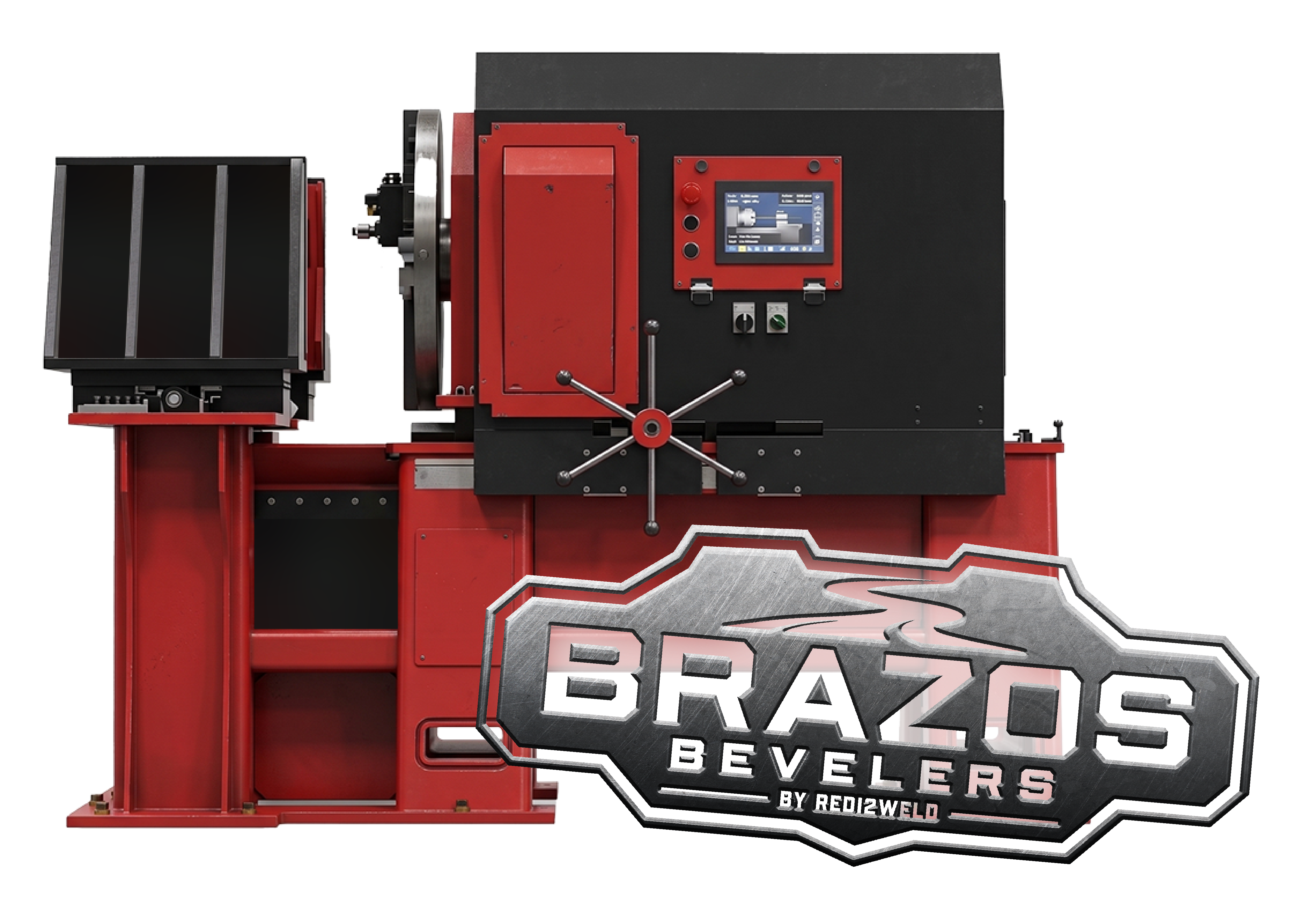

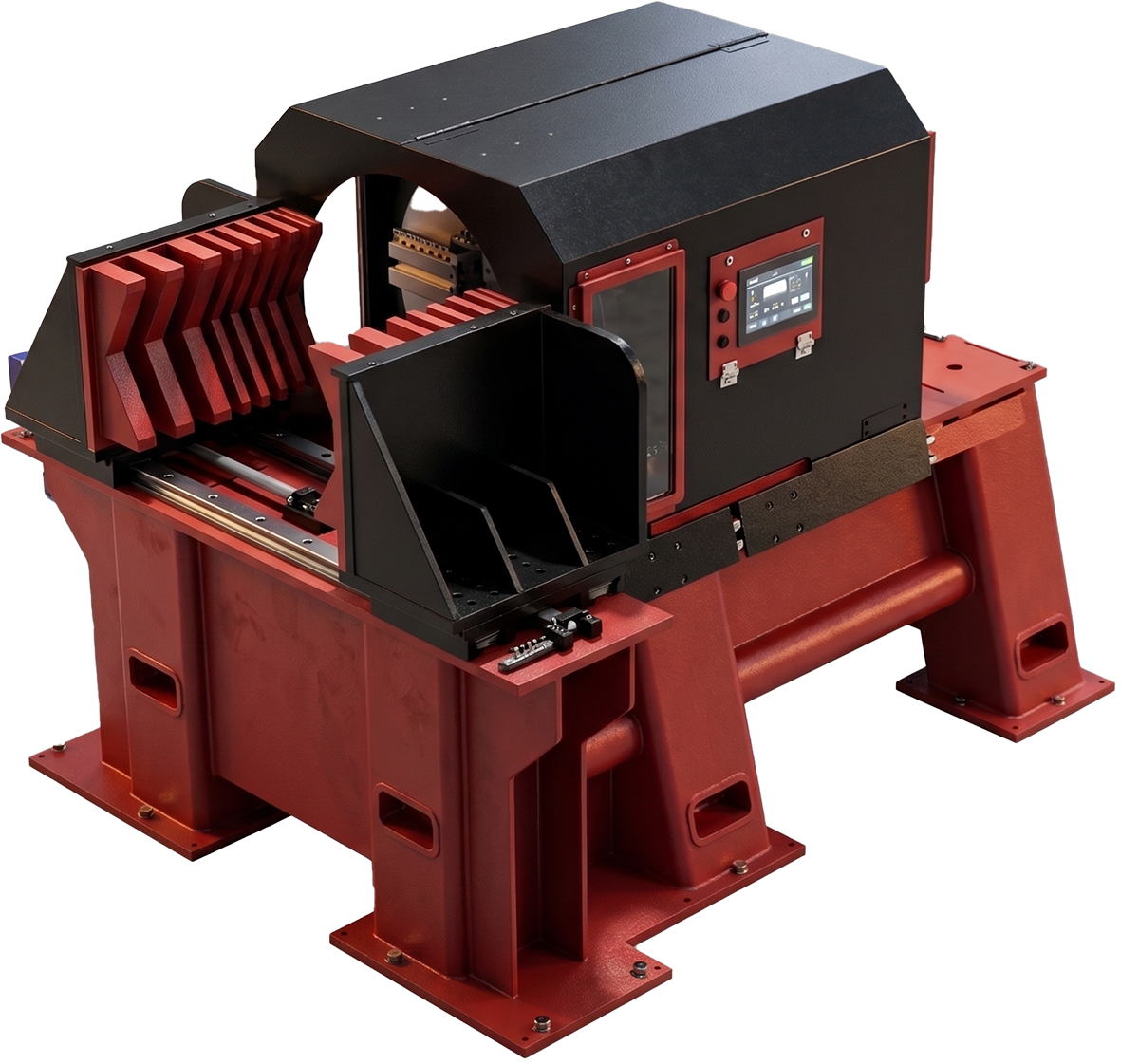

Introducing the BB-24 from Brazos Bevelers, a heavy-duty pipe and tube end preparation system.
High Performance End Prep for Heavy Fabrication
The BB-24 is designed for precision pipe and tube end preparation, delivering high-performance beveling, facing, and counterboring capabilities for demanding fabrication environments.
Ships complete with 37.5 degree tool bit holder and 0 degree tool holder (facing)
10 tool inserts for facing or beveling with 5 seats and 5 sets of pins for locking bits on holder
Tool kit for general maintenance and setting of tool bits
Lighted & enclosed machining area
Interlocking safety door
Automatic power shutoff when door is opened
Motor over-torque shutdown protection
Large high-impact resistant viewing windows
Key Features & Specifications
- Power: 480V – 3 Phase; 80 Amp Input
- Capacity: 2.375”–24” Pipes & Tubes
- ID Tracking: 3.0 ID Minimum – 20″ ID Maximum
- Tooling: Bevel Face & Counterbore Tooling
- Clamping: Motorized Interchangeable Clamping Jaws
- Spindle Speed: 25-125RPM
- Drive Motor: 7.5 KW or 15 KW Drive Motor
- Stroke: 6” Tool Feed
- Controls: PLC Controlled with Program Storage
- Display: Recommended Speeds by Pipe Size & Alloy
- Optional Features: Motorized Spindle Infeed & Retract
- Additional Options: Elbow; Flange; Tee Clamping Jaws
- Conveyor: Adjustable Height Pipe Bed Conveyor
Machine Options
ID Tracking Module
To maintain precision land thickness regardless of pipe ovality
Adjustable
Height adjusting pipe support feed table
Customizable
Interchangeable clamping jaws for fittings
